dsh-file-explorer-preview-molstar

中文 | English

A DSH Web plugin that adds a Mol* 3D structure viewer to dsh-file-explorer, overriding its plain previews for protein-structure and small-molecule files.

Select a .cif / .pdb (or any supported format below) in the file explorer and the preview panel renders an interactive 3D model instead of raw text.

Screenshots

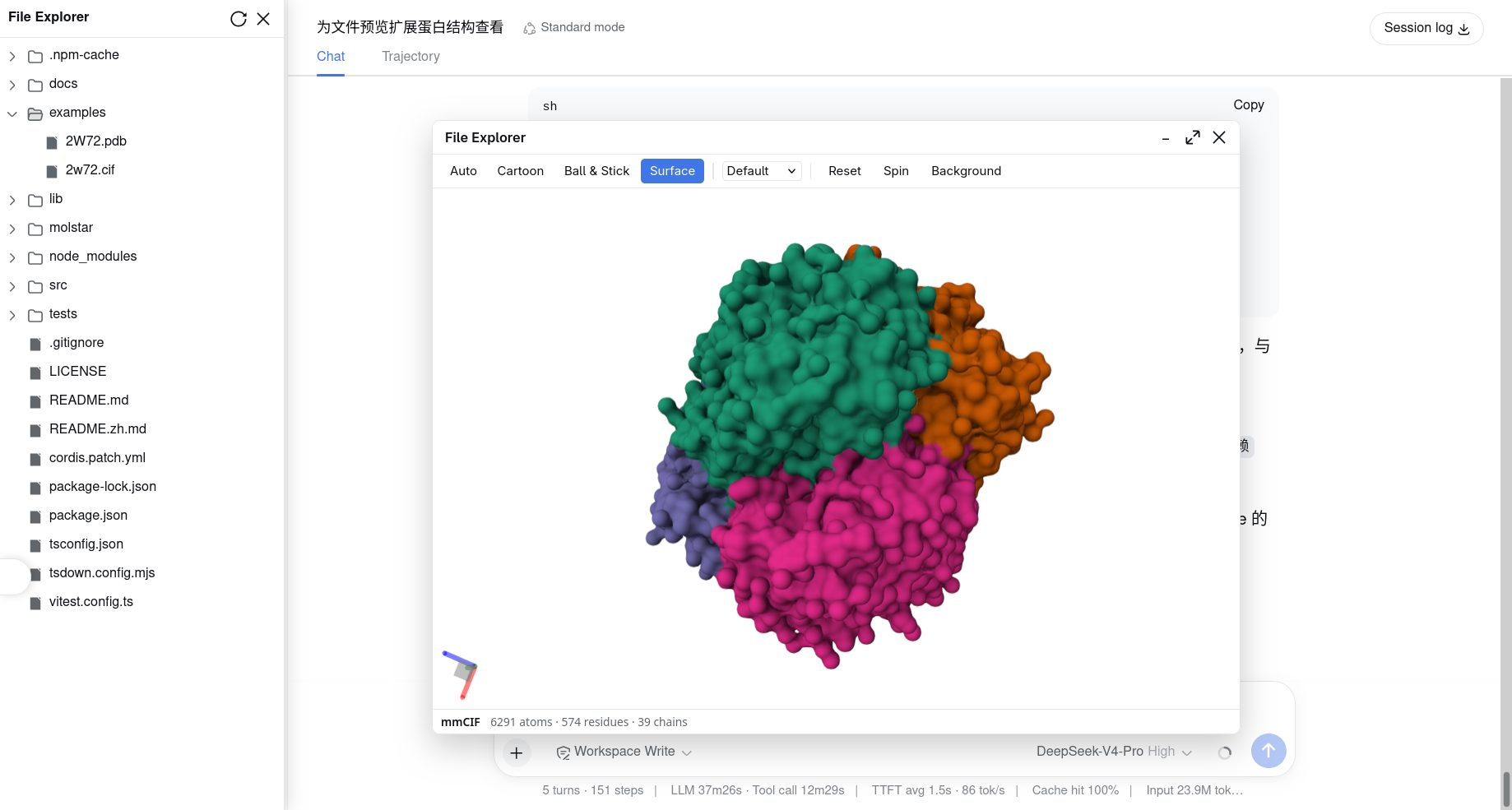

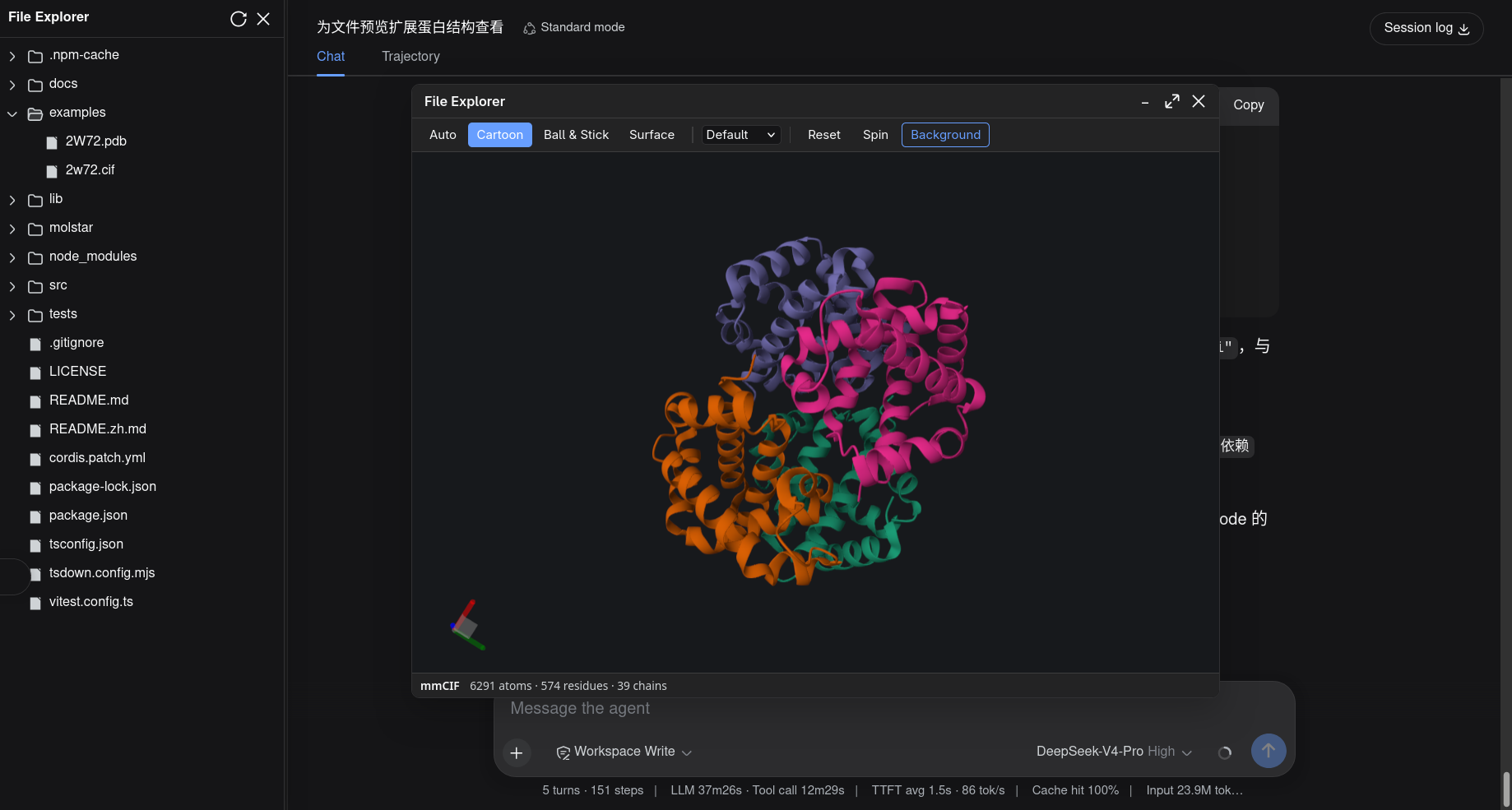

Dark theme	Light theme

Features

• 3D structure viewer built on molstar (PluginContext + a minimal canvas — no full Mol* UI).
• Representation presets: Auto / Cartoon / Ball & Stick / Molecular surface.
• Coloring by default / chain / entity, reset camera, spin toggle, and a dark/light background that follows DSH's data-ds-dark-theme.
• Status bar with the format badge and atom/residue/chain counts.
• Localized toolbar/status copy (中文 / English).
• Large & binary files: for files over the core's 2 MiB text cap, and for .bcif, the plugin fetches raw bytes through the core's fileExplorer.readRawFile (standard in dsh-file-explorer v0.1.0+).

Supported formats

Install

From the Git repository

dsh plugin --profile web add github:wolfsonliu/dsh-file-explorer-preview-molstar
dsh web

From source

git clone https://github.com/wolfsonliu/dsh-file-explorer-preview-molstar
cd dsh-file-explorer-preview-molstar
npm install
npm run build
dsh plugin --profile web add .
dsh web

Dependencies

This plugin requires @dsh-external/dsh-file-explorer v0.1.0 or later — it injects the fileExplorer cordis service (registerPreview / writeFile / readRawFile). Install and enable dsh-file-explorer before this plugin:

# install the core from git
dsh plugin --profile web add github:wolfsonliu/dsh-file-explorer

# or, from source
git clone https://github.com/wolfsonliu/dsh-file-explorer
cd dsh-file-explorer
npm install && npm run build
dsh plugin --profile web add .

For local development, this repo's devDependencies resolves @dsh-external/dsh-file-explorer's ./client type definitions. Point it at your checkout or your registry's published package before npm install.

For files ≤ 2 MiB the plugin parses the text preview content directly. For larger files and .bcif, the plugin uses readRawFile to fetch raw bytes — this is a standard part of the FileExplorerService contract in dsh-file-explorer v0.1.0+.

Limitations

• Requires a WebGL-capable browser.
• Read-only preview (no editing).
• Trajectories and density maps (.dcd, .nc, .map) are out of scope.

Development

npm run check   # tsc type check
npm test        # vitest unit tests
npm run build   # tsc + tsdown (single-file lib/client.js bundling molstar)

The real WebGL mount cannot run under jsdom; verify it with dsh web and a structure file in examples/.

After npm run build, hard-refresh the browser (Ctrl/Cmd+Shift+R): dsh web may keep serving a cached plugin bundle, so a soft reload can leave your latest build unused.

Acknowledgments

This plugin is built on Mol* (/ˈmol-star/), a next-generation technology stack for (not only) macromolecular structure data, jointly initiated by PDBe and RCSB PDB.

When using Mol*, please cite:

David Sehnal, Sebastian Bittrich, Mandar Deshpande, Radka Svobodová, Karel Berka, Václav Bazgier, Sameer Velankar, Stephen K Burley, Jaroslav Koča, Alexander S Rose: Mol* Viewer: modern web app for 3D visualization and analysis of large biomolecular structures, Nucleic Acids Research, 2021; https://doi.org/10.1093/nar/gkab314.

License

MIT
