ppt-reflex · Correct PowerPoint without a vision model

[]() []()

ppt-reflex is a vision-free engine that lets LLMs produce correct PowerPoint decks — plus a DeepSeek Harness (DSH) plugin with a live PNG preview panel and a click/box-select feedback loop.

Blind LLMs — DeepSeek first, but any text-only model — cannot see the .pptx they generate. ppt-reflex inverts that pipeline: the AI never writes a coordinate and never guesses how anything looks. It declares layout intent — an archetype, parameters, a recipe, a skin — and a deterministic constraint-solving engine computes every coordinate, measures every glyph, and returns structured text diagnostics.

Three things replace vision:

1. Real font measurement — PIL glyph-level FreeType metrics (CJK-aware) compute how much space text actually needs before render.
2. Structured diagnostics — every build returns machine-readable issues the AI can act on directly.
3. Three-tier ASCII feedback — an L0 structure map, L1 element map, and L2 numeric text table give the model a "picture" it can read.

The AI reads diagnostics, edits its declaration, and re-runs. CircuitBreaker watches for mechanical micro-adjustments and forces a design-level rethink before the loop burns itself out.

Screenshots

PNG Preview Panel (v3)

The preview panel shows real engine-rendered PNGs — the same output the .pptx will contain. Click an element or drag-box-select an area to give feedback; the feedback loop is fully wired.

Live preview panel (slide 4/8) with recolor palette and area-feedback visible

PPT Maker Agent Session

A ppt-maker preset agent session in DeepSeek Harness. The input bar left side shows the PPT Preview button; the agent declares deck intent, the watcher auto-builds + renders, and the panel updates in real time.

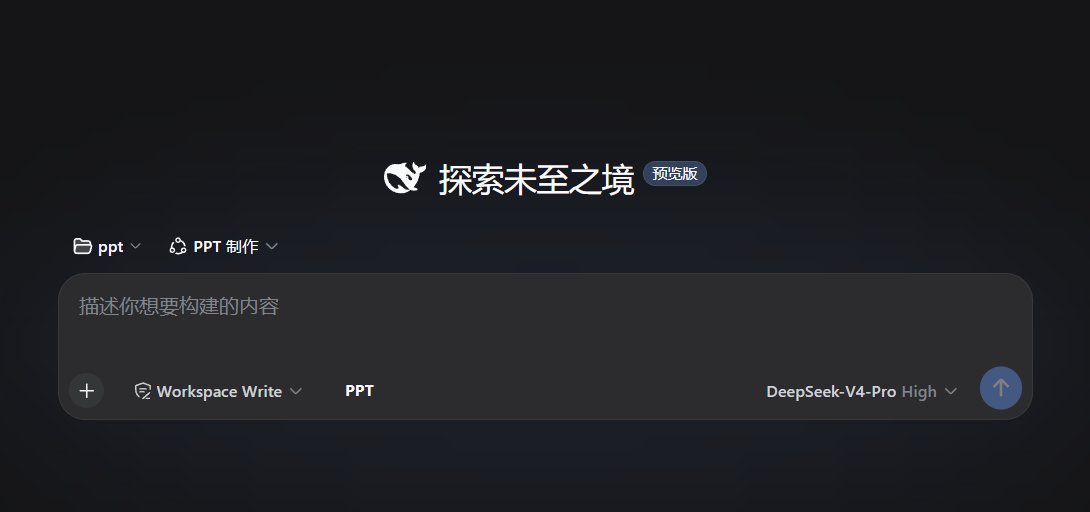

Agent session: "PPT 制作" preset selected, PPT Preview entry button visible in the input bar

The Agent-Engine Loop

            ┌─────────────────────────────────────────────┐
            │                LLM AGENT                    │
            │      (no vision — reads JSON, not pixels)   │
            │                                             │
            │   ① declare intent                          │
            │      archetype + params + recipe + skin     │
            │   ② read diagnostics + L0/L1/L2 ASCII       │
            │   ③ decide fix → declare_direction()        │
            └───────────────┬─────────────────▲───────────┘
                            │                 │
              declaration   ▼                 │  diagnostics (JSON)
                            │                 │  + three-tier ASCII
            ┌───────────────▼─────────────────┴───────────┐
            │            ENGINE (deterministic)           │
            │  resolve archetype → phase1 layout →        │
            │  collision → composition → WCAG contrast →  │
            │  PIL text metrics → freeze → roundtrip      │
            │  + auto-render PNG (_render_vision/)        │
            │  CircuitBreaker guards the fix loop         │
            └───────────────┬─────────────────▲───────────┘
                            │                 │
                  build()   ▼                 │  fix_slide() / rebuild()
                            │                 │
             .pptx written — ok:true = visually correct
             .png written  — panel shows the real result

Not "AI generates, human fixes." It is "AI declares, engine computes + renders, AI reads, AI decides, loop." Every LLM can read JSON. That is the whole trick.

Design philosophy — the engine speaks the AI's own language. The declaration layer is deliberately HTML/CSS-isomorphic: the model's deepest muscle memory. grid_cards reads like CSS Grid, fit_mode accepts contain/cover like object-fit, density accepts comfortable/spacious, recipe works like a component class. This is not HTML→PPTX conversion; the engine only borrows the vocabulary so a blind LLM can drive layout with knowledge it already has. The mapping lives in one place: ppt_reflex/grid/agent_vocabulary.py.

Features

• Blind-LLM friendly by design. The AI writes no coordinates and no raw python-pptx calls. It declares what it wants — archetype, params, recipe, frame/rail/corner_mark — and the engine solves where.
• Deterministic constraint solver. Same declaration → same layout, every time. Coordinates come from a reproducible pipeline, not a sampled model.
• Real font measurement. text_metrics.py measures glyph advances with PIL/FreeType against Microsoft YaHei (CJK-capable), falling back gracefully. Overflow is caught before the file is written.
• Structured diagnostics. {slide, phase, kind, severity, message, options} per issue, deduplicated and batch-collapsed.
• Three-tier ASCII feedback. L0 structure map · L1 element map (# overlap, ! overflow) · L2 numeric text table.
• PNG preview panel (DSH plugin). Watcher auto-builds AND renders PNGs on every deck change; the panel shows real rendered pages with click/box-select feedback. No frame-stream redraw — the panel sees the engine's own output.
• Two-level correctness floor. geometry_ok and harmony_ok — both verifiable floors, never taste.
• Harmony rules, OKLCH-measured. 60-30-10 colour ratio, focal-point uniqueness, hue harmony — all OKLCH.
• Guaranteed-fix loop. CircuitBreaker escalates: same direction → WARN, three times → BLOCK; mechanical tweaks → BLOCK.
• Design tokens + recipes. tokens.json / recipes.json hold tiered values; recipes pre-resolve token values.
• Aesthetic judgment stays human. The engine enforces the objective floor (WCAG AA contrast) and never pretends to have taste.

What's new in v2 (PNG preview)

What's new in harmony v1 (supersedes v0.6.0)

Quick Start

Install

git clone https://github.com/lecutu/dsh-slide-reflex.git && cd dsh-slide-reflex
pip install -e .

Python 3.10+. Two runtime dependencies: python-pptx and Pillow.

Minimal deck

from ppt_reflex.builder import PPTBuilder

b = PPTBuilder(template="business", style="corporate_minimal")
b.add_slide("Why This Exists",
    archetype="content",
    elements=[
        b.title("python-pptx Is Blind"),
        b.bullet("Text overflow and invisible text are silent failures"),
        b.box("Every LLM can read JSON.\nNo vision required.", recipe="card"),
    ],
)
result = b.build("output.pptx")
print(result["summary"])

Runner command (DSH bridge)

python _dsh_ppt_runner.py < deck_request.json

DSH Plugin Workflow

user says what they need
        │
        ▼
agent questionnaire → generate deck (archetypes + params + recipes + skins)
        │
        ▼
write D:\ppt\_deck_auto.json  ──►  host watcher auto-builds + renders PNGs
        │
        ▼
panel polls previewState → shows real rendered PNGs
        │
        ▼
feedback loop:  click element · drag-box select · recolor · ask question
        │
        ▼
agent edits deck  ──►  watcher rebuilds + re-renders  ──►  panel updates

Build trigger = writing the deck file. The host watcher watches _deck_auto.json; on change it runs the engine AND renders PNGs — the panel shows the result without any manual renderSlides call.

Workflow file bridge:

For full plugin documentation, maintenance notes, and troubleshooting: see plugins/dsh-slide-reflex/README.md and docs/.

API Overview

12 archetypes: title_cover · content · two_column · comparison · data_showcase · grid_cards · image_hero · conclusion · section · quote · timeline · blank.

6 templates: academic · business · minimal · data_report · teaching · product. 6 style presets: academic_rigorous · corporate_minimal · tech_dark · editorial_magazine · creative_vibrant · government_solemn.

Escape Hatches

The engine is a floor, not a ceiling. Three layers let the agent take back control:

1. Hand-written regions. Skip the archetype, pass explicit regions=[...].
2. Element parameters. Every primitive accepts overrides — pw/ph, fill_color, corner_radius, align_h, font_size.
3. Agent takeover code. Drop to raw python-pptx or the officecli skill for one slide.

Roadmap

• ✅ Golden-set regression (T6) — baseline + runner + 110 passing tests landed in harmony v1
• ✅ PNG preview panel — watcher auto-renders, panel shows real PNGs, box-select feedback wired
• Harvest golden cases from real feedback (tools/golden_harvest.py)
• More recipes and tokens — grow the human-curated asset layer
• More parameterized primitives — columns/gap/density-style parameters for more archetypes
• Reference-PPTX layout extraction — wire layout_extractor.py into register_archetype()
• Full ASCII → diagnostic cross-linking — every #/! clickable to its JSON diagnostic

ppt-reflex is MIT licensed. Built for AI agents. Blind-proof by design — ok: true means the file is correct, and no one had to see it.

Docs

• docs/slide-reflex-engineering.md — full engineering maintenance document
• docs/preview-panel-deepdive.md — preview panel root-cause analysis
• plugins/dsh-slide-reflex/README.md — plugin developer docs
• .claude/skills/ppt-maker/SKILL.md — agent operating manual
