DSH Auth Tunnel

English | 中文

Expose the DeepSeek Harness Web GUI through a password-protected Cloudflare Tunnel without changing deepseek-harness itself.

Usage

Prerequisites

• The dsh CLI and pnpm are available on PATH; the plugin command creates the Web profile when it is missing.
• cloudflared available on PATH, or an absolute executable configured for the plugin.
• A long, random shared password stored as a DSH credential.

Install

Install the prebuilt rc.8 bundle from npm:

dsh plugin --profile web add dsh-auth-tunnel@next

Or install the current sources from Git:

dsh plugin --profile web add github:ai-eks/dsh-auth-tunnel

This branch targets DeepSeek Harness 0.1.0-rc.8 and later. Harness 0.1.0-rc.7 must pin its compatible immutable revision, while 0.1.0-rc.6 must pin the matching tag:

dsh plugin --profile web add 'github:ai-eks/dsh-auth-tunnel#b4baea7c47f5c245da789d3553d41938df89b311' # Harness rc.7
dsh plugin --profile web add 'github:ai-eks/dsh-auth-tunnel#v0.1.0-rc.6'

Git installs build the checked-out sources through prepare. pnpm 10 and later may first ask you to allow that build in the profile's pnpm-workspace.yaml; follow the path and exact package key printed by dsh and then rerun the command.

For a local checkout, build it before adding the path:

cd /path/to/dsh-auth-tunnel
pnpm install
dsh plugin --profile web add .

The bundle inserts and enables the auth-tunnel row in quick mode and replaces the Host-native directory picker with the in-app browser picker. No deepseek-harness source edit or extra profile row is required.

Quick mode

Quick mode is the default. Store the shared password in $DSH_HOME/.credentials.yaml ($DSH_HOME defaults to ~/.dsh):

DSH_WEB_PASSWORD: 'replace-with-a-long-random-password'

Start the Web profile:

dsh web

After the tunnel is ready, the terminal prints:

cloudflare tunnel: https://<random>.trycloudflare.com

Open that URL and enter DSH_WEB_PASSWORD on the login page. Share the URL, not the password. The active row also appears in Web Settings → Plugins.

Web settings

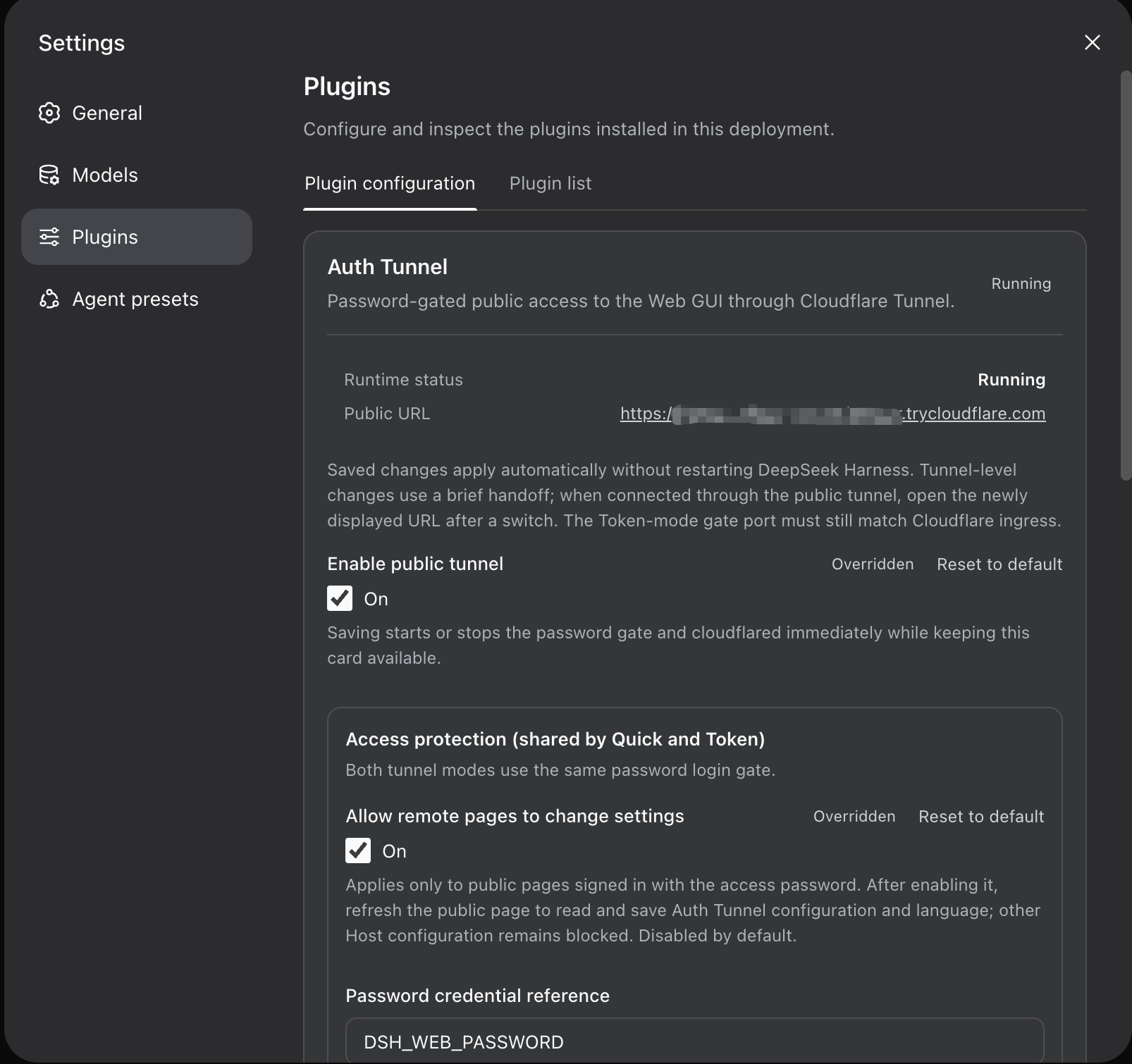

With the Loader auth-tunnel row enabled, open Settings → Plugins → Plugin configuration → Auth Tunnel to edit every option. Saving the Enable public tunnel switch immediately starts or stops the gate and cloudflared while keeping this card available. The card also shows applying, running, stopped, or failed state and the current public URL.

Allow remote pages to change settings is disabled by default. Enable it locally and refresh the public page to let pages that passed the access-password login read and save the Auth Tunnel card and Language preference. These writes use authenticated endpoints owned by this plugin, so they work with the unmodified DeepSeek Harness 0.1.0-rc.8. The switch is a separate fence from the core Host configuration plane: the gate proxies settings.*, credentials.*, and llm.* straight to the Host for every authenticated public page, except that core settings writes targeting the auth-tunnel namespace are rejected and must use the fenced plugin endpoint. The bundle's immediate client entry publishes that authenticated route before rc.8 settings scopes classify the browser. The public GUI therefore keeps full configuration parity with the local one — responses come back redacted, and a secret crosses the wire only inside a write payload. Only one remote write is accepted at a time, and writes attempted while a previous change is applying return a conflict so the page can reload and retry. A remote page cannot save a change that would allocate a new random Quick URL (switching to Quick, or changing the Quick gate port or executable); make that change locally so the new URL remains discoverable. Turning the switch off remotely completes that save before access closes, and enabling it again must be done from a local page or the settings document.

The card updates the credential named by the currently saved passwordRef through a separate Update password button. Password and configuration changes are never submitted as one transaction. The input clears after a successful update, and neither the Host nor the page returns or displays the literal. The password remains reusable until replaced and is not a login-once OTP. To change passwordRef, create that credential first and save the reference before updating its password. Store the Tunnel Token in the credential service first; tokenRef names that stored credential.

Saved values apply automatically without restarting DeepSeek Harness. passwordRef and sessionTtlHours update in place; tunnel-level changes such as mode, tokenRef, gatePort, or executable start a candidate and then replace only the plugin's gate or cloudflared. If the candidate cannot start, the card reports the error and keeps the previous tunnel. A successful switch can briefly interrupt the public page; open the newly displayed URL and reload before retrying a failed operation. Switching back to Quick preserves the Token-mode fields for a later switch, and Quick ignores them. Keep the Loader row enabled for normal on/off control: setting Loader disabled: true unloads both the Host auth-tunnel settings namespace and its card.

Named tunnel mode

Use token mode when the public hostname must remain stable. Create a named Cloudflare Tunnel, bind a hostname such as gui.example.com, and point its dashboard ingress at a fixed loopback gate such as http://127.0.0.1:7677.

Store both credentials in $DSH_HOME/.credentials.yaml:

DSH_WEB_PASSWORD: 'replace-with-a-long-random-password'
DSH_TUNNEL_TOKEN: 'eyJhIjo...'

Override the bundle row in $DSH_HOME/profiles/web/cordis.patch.yml:

- id: auth-tunnel
  disabled: false
  config:
    enabled: true
    mode: token
    tokenRef: DSH_TUNNEL_TOKEN
    publicHostname: gui.example.com
    gatePort: 7677

publicHostname is only the DNS hostname: do not include https://, a port, or a path. Except for the Tunnel Token literal itself, the same configuration can be made and applied immediately through the Web settings card above. After changing gatePort, the Cloudflare Dashboard ingress must still point at the same port.

Configuration reference

Known limitations

• Shared password, single-user trust: every password holder receives the whole Web GUI; enabling allowRemoteSettings also grants the Auth Tunnel card, its write-only password input, and Language preference. The core Host configuration plane (settings, credentials, LLM catalog) is proxied to the Host for every authenticated public page; responses are redacted and a secret travels only inside a write payload. There is no rate limiting, lockout, per-user session, or server-side revocation list. Password rotation invalidates every session; stronger deployments should use Cloudflare Access or another identity-aware proxy.
• Single tunnel, no automatic restart: an unexpected cloudflared exit is logged and shown in settings, but the tunnel does not restart automatically; toggle it off and on to recover.
• Quick URLs change on every start: use token mode and a domain when a stable URL is required.
• Loopback remains unauthenticated: the password protects the tunnel path only. Local browsers and processes can still reach the original Web GUI directly.
• Minimal child environment: the child inherits only PATH, HOME, and TMPDIR. A corporate proxy must be configured for cloudflared outside this plugin.
• Loopback HTTP is plaintext: the gate and upstream WebServer communicate over same-host loopback HTTP; TLS terminates at Cloudflare.
• One directory-picker interaction per boot: enabling the bundle uses the in-app browser picker for local clients too because the Web app cannot select native and browser pickers per connection.

How it works

public client
  → Cloudflare edge (TLS)
  → cloudflared (this host)
  → password gate, loopback only
  → existing loopback WebServer

Password gate and proxy

The plugin requires the webServer and credentials services. It starts its own loopback node:http gate, resolves the configured password reference, and points cloudflared at that gate. The original WebServer and every route contributed by other plugins remain unchanged behind it.

Unauthenticated browser navigation is redirected to /dsh-auth-tunnel/login; other unauthenticated requests receive a small 401 response. A successful login mints the HttpOnly; SameSite=Strict dsh_auth_tunnel cookie, signed with an HMAC key derived from the password. Authenticated navigations also refresh a readable dsh_auth_tunnel_surface=1 marker used only to classify the rc.8 client before settings plugins activate; it grants no access, and the Gate still verifies the HttpOnly cookie on every request. The credential is resolved on every request, so rotating it immediately invalidates existing sessions. GET or POST /dsh-auth-tunnel/logout clears both cookies.

The gate caps login bodies at 16 KiB and proxies authenticated HTTP and WebSocket traffic. It rewrites Host and a matching browser Origin to the loopback upstream authority so the WebServer's DNS-rebinding and same-origin checks continue to see their trusted address. Foreign or opaque origins remain unchanged. HTTP hop-by-hop headers are removed on both proxy legs and regenerated per connection; upgrade handshakes retain their required fields. Client disconnects cancel the corresponding upstream request.

The only unauthenticated upstream application route is read-only GET/HEAD /manifest.webmanifest. Browsers fetch this metadata without credentials unless the page opts into credentialed manifest requests, and the file contains only public application metadata.

Directory picker

The bundle disables the boot-selected native directory picker and mounts the in-app directory browser. A public host.pickDirectory request cannot operate an OS dialog on the Host display and otherwise waits until Cloudflare returns 524. The browser picker works for both local and public clients without per-route hooks.

Tunnel lifecycle

• quick runs cloudflared tunnel --url http://127.0.0.1:<gate> and reads the generated *.trycloudflare.com URL from child output.
• token passes the Tunnel Token through TUNNEL_TOKEN in the child environment, runs cloudflared tunnel run, and waits for the registered-connection marker. The token never appears in argv.

Initial activation completes only after the gate is listening and the tunnel reports readiness. Invalid credentials or mode fields, an occupied gate port, a missing executable, an early child exit, and readiness timeout all fail the initial plugin load before a public URL is announced. Runtime settings updates are coalesced and reconciled serially; rebuilds stage new resources before replacing old ones, and a failed replacement preserves the previous tunnel and reports through the settings status route. Disposal or the page switch closes the gate, sends SIGTERM to cloudflared, escalates to SIGKILL after 2000 ms when necessary, and removes the shell and prompt contributions.

Model experience

Once the tunnel is ready, the plugin publishes DSH_PUBLIC_URL through the optional shell-env service and adds the app:public-access system-prompt section through the optional system-prompt service. Without this row, neither contribution exists.

The rendered prompt section is:

This instance is also reachable from the public internet at <publicUrl> through a Cloudflare Tunnel, protected by the instance's shared access password. Share that URL — never the password — when the user asks to open this GUI from another device or network. All sessions, tools, and files still run on this host.

The section is static for the life of the tunnel process, so it does not invalidate the KV cache across turns.
