Flowglass（流镜 · dsh-flowglass）

A DeepSeek Harness plugin: turn the current session into a live flowgraph — three lanes, subagent branches, parallel groups, drill-down — plus a hot-reloadable session toolbox in the same drawer. MIT License.

v2026.08.18 — DSH rc.7 lifecycle hardening: zero-model-call autoboot, canonical multi-workspace isolation, streaming Flow cards with live timers/interruption settlement, session-following drawer fixes, and lifecycle-safe Client timers.

中文文档见下方 中文文档。

Every plugin is mounted through a disk-loading stub: the payload is a ~0.9KB stub, the implementation lives on disk, so code edits take effect by simply re-running the plugin — no re-define, no re-approval.

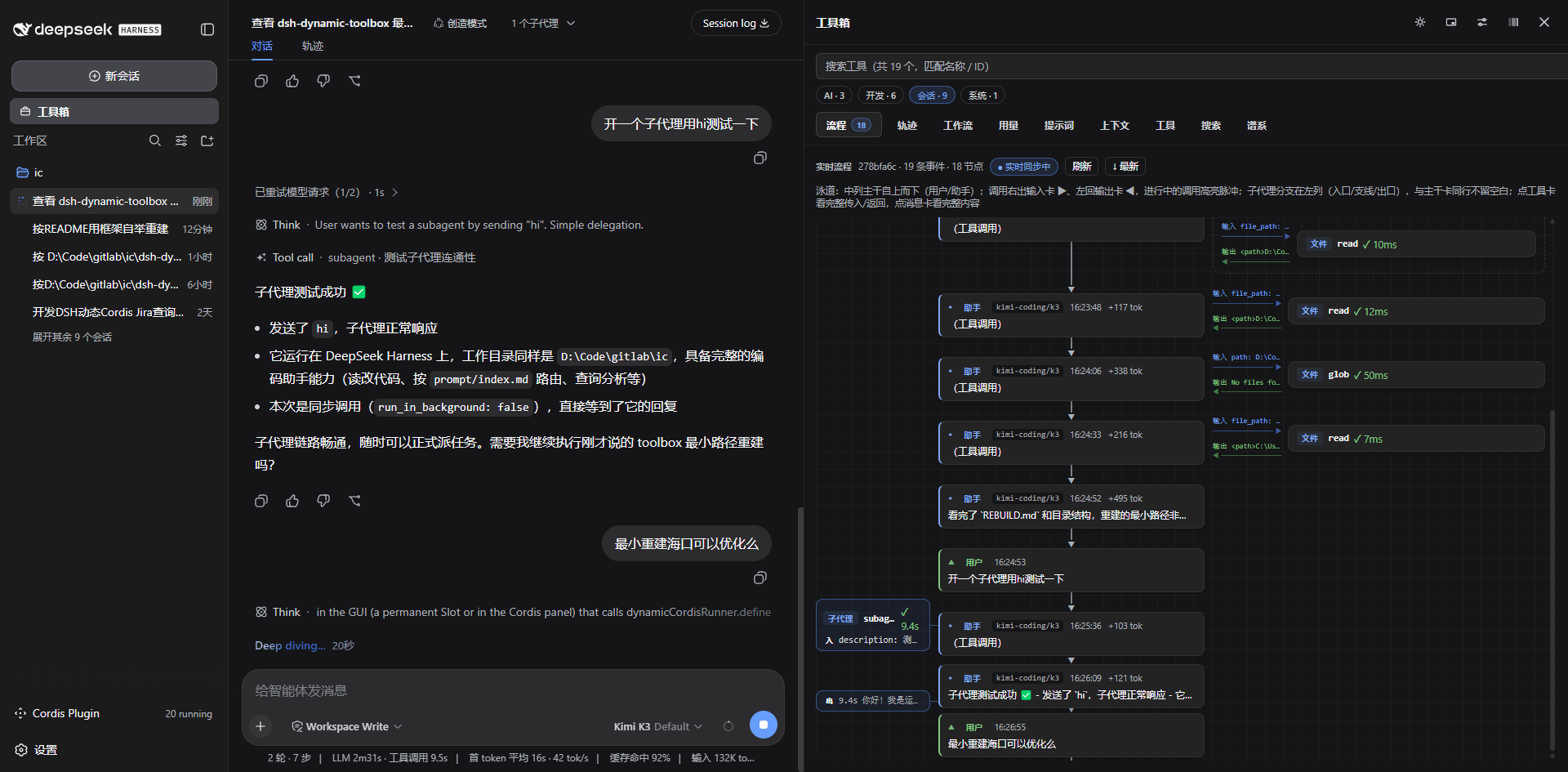

Live flow

The drawer's default tab turns the current session into a living flowgraph, silently auto-refreshing every 2s (pausable via the live toggle):

• Three-lane layout — the center trunk walks user/assistant steps top-down; each tool call branches right with its input card ▶ and returns left with its output card ◀ (green on success, red on error, dashed while in flight)
• Subagent branches — a spawned child session grows its own left-column branch (entry / steps / exit) on the same row as the trunk card that started it, with steps sampled from the child's own session log
• Drill-down — click 「进入 →」on a subagent branch to open that child session's own flowgraph; breadcrumbs walk back level by level, nesting unlimited
• Parallel groups — simultaneous tool calls in one step are wrapped in a dashed 「并行 ×N」frame; the running call pulses with a highlight so you always see exactly which step the agent is on
• Zero-jump details — click a tool card for its full arguments/result, click a message card for full content with model + token metadata; details open in a side overlay instead of inflating the flow, so expand/collapse never moves your scroll position

The toolbox

The same drawer hosts 21 hot-reloadable mini-tools on top of a shared framework (Host-side registry + RPC; Client-side drawer, tab bar and the tb- panel design system):

• Bootstrap rebuild — the framework auto-defines and starts all missing plugins from plugins.json on startup (idempotent, ~0.3s for all 22), honoring per-plugin enable memory
• Zero-model-call autoboot (optional): host-bootstrap/ auto-starts the framework on session open — 0 model calls, 1 approval click, any mode
• Contract smoke tests: node smoke.mjs runs 21 simulation suites, including real rc.7 Cordis composition and multi-workspace isolation coverage

Install

Prerequisites: DeepSeek Harness running with dynamic-plugin (Cordis) support; a workspace directory (repo root = workspace root, or the repo cloned as a subdirectory of it).

Path A · compiled bundle from npm (recommended)

dsh plugin --profile web add dsh-flowglass        # Flow-only (framework is implicit)
dsh plugin --profile web add dsh-dynamic-toolbox   # the full toolbox
# upgrade: dsh plugin --profile web add dsh-flowglass@<new-version> && restart DSH

Compiled bundles are native static Host/Client packages: no dynamic approval, no dyn/*, Services/RPC/Slots/DOM/storage/events namespaced by bundleId. They don't hot-reload from disk — upgrade = add the new version + restart DSH.

Path B · autoboot from source (your own machine, install once)

1. pwsh host-bootstrap/install.ps1     # idempotent; uninstall with -Uninstall
2. Restart DSH
3. Open any session in any mode → approve the Client card once
   → the framework auto-bootstraps all 22 plugins (selfview asks for one more approval)

Path C · zero-install (AI-driven, nothing persisted in DSH)

1. Switch the session to 「创造模式」(Creative mode — the only preset mounting cordis_define/cordis_run)
2. In the session: cordis_define ← plugins/toolbox/payload.json
3. cordis_run and approve once → the framework auto-bootstraps the rest

Either way: daily rebuild/rerun/toggle afterwards works in any mode — the drawer manage view and the Cordis panel drive the process-global runner directly. Credentials (e.g. Jira) live in the Harness credential store or environment variables — never in this repo. Full guide: REBUILD.md, plugin authoring: PLUGIN-DEV.md.

Build bundles locally

The same plugins/ sources can be compiled into installable npm packages:

node scripts/build-toolbox-bundle.mjs --flow              # Flow-only (framework is implicit)
node scripts/build-toolbox-bundle.mjs --flow --jira       # Flow + Jira
node scripts/build-toolbox-bundle.mjs --features flow,jira --version 0.1.0
cd dist/toolbox-bundles/flow-jira && npm pack             # → installable tgz
dsh plugin --profile web add <tgz>                        # install/upgrade; remove to uninstall

• --name sets the npm package name (publishable with npm publish); --version must be a valid semver
• Gates: node scripts/verify-generated.mjs (dynamic-dev drift), node scripts/verify-bundle.mjs <dir> [--pack] (native static contract + tarball list), node smoke.mjs (21 suites)
• selfview still depends on the dynamic-only harness bridge and is rejected by the static compiler until its native Remote migration is implemented

Why dynamic (framework advantages)

• Workspace-isolated, process-multiplexed — one process can host multiple repository toolboxes at once; registry, management actions and enable memory stay routed to the owning workspace
• Hot reload — the implementation lives on disk behind a ~0.9KB stub: re-run to apply edits, no re-define, no re-approval, no process restart
• Approval gate kept — browser code still asks once per process; nothing becomes unconditionally trusted at install time
• Immutable versions — packages coexist; update flips a pointer, rollback is one call, a failed update never loses the working version
• Self-bootstrap rebuild — dynamic plugins don't survive restarts, so the framework re-defines everything missing from plugins.json in ~0.3s; the optional host-bootstrap/ trigger reduces that to "open a session, one click"
• AI-native — cordis_define / cordis_run are model tools: an agent can build and mount a tool for itself at runtime

Develop your own tool

Coupling is deliberately narrow: a tool plugin only needs ctx.get('toolboxRegistry').register(desc, handler) plus the HTML panel protocol — three steps, a ~15-line skeleton, no client code for Host-only tools. Full guide: PLUGIN-DEV.md.

License

MIT © 2026 Iwctwbh

中文文档

Flowglass（流镜 · dsh-flowglass）

DeepSeek Harness 插件：把当前会话实时画成流程图——三列泳道、子代理分支、并行分组、逐层钻取；同一个抽屉里还挂着一组可热重载的会话小工具。MIT License。

v2026.08.18 — DSH rc.7 生命周期加固：零模型调用自举、canonical 多工作区隔离、Flow 流式助手卡/实时计时/中断收口、抽屉会话跟随修复，以及 Client Timer 生命周期化。

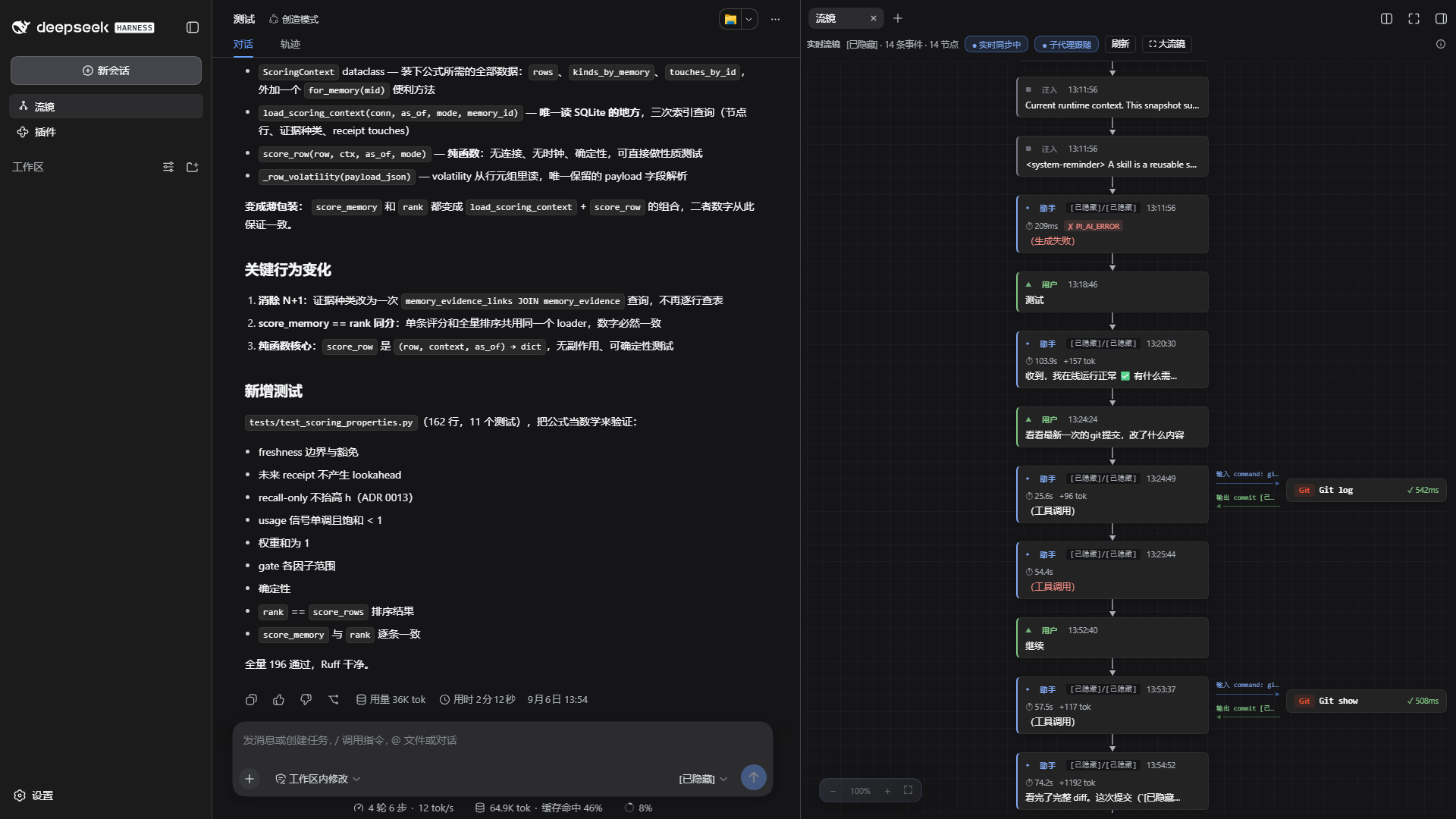

实时流镜

抽屉默认 Tab，把当前会话实时画成流程图，每 2s 静默自刷（live 开关可暂停）：

• 三列泳道：中列主干自上而下走「用户/助手」步骤；工具调用右出输入卡 ▶、左回输出卡 ◀（成功绿色、错误红色、进行中虚线）
• 子代理分支：子会话在左列长出独立支线（入口/支线/出口），与触发它的主干卡同行不留空白，支线步骤取自子会话自己的日志
• 钻取：点分支上的「进入 →」打开该子会话自己的流程图，「← 返回」逐级退回，嵌套不限层数
• 并行分组：同一步的多个并行调用用虚线框 +「并行 ×N」角标圈成一组；进行中的调用高亮脉冲，一眼看到智能体正跑到哪一步
• 零跳跃详情：点工具卡看完整传入/返回，点消息卡看完整内容（含模型/tokens 元信息）；详情挂右侧浮层、不撑高流程内容，展开收起滚动位置不动

工具箱

流镜之外，同一个抽屉承载 21 个热重载小工具（由框架插件统一承载：Host 注册表 + RPC、Client 抽屉/Tab/通用 HTML 面板壳 + tb- 设计系统）：

• 自举重建：框架启动自动补齐 plugins.json 中缺失的全部插件（幂等，22 个约 0.3s），遵循逐插件启停记忆
• 零模型调用自举（可选）：host-bootstrap/ 开会话即自动启动框架——0 次模型调用、1 次批准点击、任何模式
• 契约冒烟：node smoke.mjs 运行 19 套模拟，含真实 rc.7 Cordis 组合与多工作区隔离覆盖

安装

前置：已安装并运行 DeepSeek Harness（支持动态 Cordis 插件）；仓库根作为工作区打开（或 clone 为工作区的一级子目录）。

方式 A · npm 安装编译包（推荐）

dsh plugin --profile web add dsh-flowglass       # 仅流镜（框架自动隐式加入）
dsh plugin --profile web add dsh-dynamic-toolbox  # 完整工具箱
# 升级：dsh plugin --profile web add dsh-flowglass@<新版本> 然后重启 DSH

编译包是原生静态 Host/Client 包：无动态批准、无 dyn/*，Service/RPC/Slot/DOM/storage/事件按 bundleId 隔离；不热重载——升级 = add 新版本 + 重启 DSH。

方式 B · 源码自举（自己的机器，装一次）

1. pwsh host-bootstrap/install.ps1     # 幂等；卸载加 -Uninstall
2. 重启 DSH
3. 任何模式开新会话 → 批准卡点一次允许（不归属任何会话；同仓库并发会话 single-flight 只弹一份）
   → 框架自动补齐全部 22 个插件（selfview 会再弹一张批准卡）
   （注册表按仓库分键：同一仓库已有框架实例时新会话跳过自举，直接共享；不同仓库各自自举并行共存）
4. 多工作区并存：同一 DSH 进程内多个工作区可并行（抽屉跟随当前工作区切换，v6.3 multiplex）；
   需要进程级隔离时再走「每项目一个独立 DSH 实例」——均见 `REBUILD.md` → **多工作区并存**小节。

方式 C · 零安装（AI 驱动，DSH 里不留任何东西）

1. 会话切到「创造模式」（唯一挂载 cordis_define/cordis_run 的 preset）
2. 会话中：cordis_define  ←  plugins/toolbox/payload.json
3. cordis_run，批准一次 → 框架自动补齐其余插件

两条路互不冲突、随时互切：bootstrapper 幂等跳过已定义，框架 doRebuild 幂等补齐缺失。跑起来之后，日常补齐/重跑/启停在任何模式都能进行——抽屉管理视图与 Cordis 面板直驱进程级全局 runner，不经过模型工具。凭据（Jira 等）走 Harness 凭据存储或环境变量，不写入本仓库任何文件。完整细节见 REBUILD.md，插件开发见 PLUGIN-DEV.md。

本地构建发布包

同一份 plugins/ 源码可编译成可安装的 npm 包：

# 查看所有可选功能和参数
node scripts/build-toolbox-bundle.mjs --help

# Flow-only → dist/toolbox-bundles/flow/
node scripts/build-toolbox-bundle.mjs --flow --version 0.1.0 --clean

# Flow + Jira → dist/toolbox-bundles/flow-jira/
node scripts/build-toolbox-bundle.mjs --flow --jira --version 0.1.0 --clean

# 等价的通用写法；发布 scoped 包时可指定 --name
node scripts/build-toolbox-bundle.mjs `
  --features flow,jira `
  --id flow-jira `
  --name @your-scope/dsh-flow-jira-toolbox `
  --label "Flow + Jira 工具箱" `
  --version 0.1.0 `
  --clean

--name 决定 npm 包名（npm publish 直接发布）；--version 必须是合法 semver。验证与打包：

node scripts/verify-bundle.mjs dist/toolbox-bundles/flow --pack
Push-Location dist/toolbox-bundles/flow
npm pack
Pop-Location

npm pack 会在对应目录生成类似 dsh-flow-toolbox-0.1.0.tgz 的文件。升级：提高 --version，重新构建、验证、npm pack，再对新 tgz 执行同一个 dsh plugin ... add 命令并重启 DSH。卸载：

dsh plugin --profile web remove dsh-flow-toolbox
dsh plugin --profile web remove dsh-flow-jira-toolbox

编译合集自包含（不读本仓库 loader.js / plugins.json / payload.json），Service、Remote、Slot、DOM、storage、事件和 CSS 全部按 bundleId 隔离，可与动态模式及其他合集同进程共存。工具业务数据仍落工作区 .dsh-dynamic-toolbox/；静态合集没有动态管理/热重载，升级必须重新构建、安装并重启。selfview 仍依赖动态专用 harness bridge，迁移为原生 Remote 前静态编译器会明确拒绝它。

• 动态开发模式仍遵循 <工作区>/.dsh-dynamic-toolbox/toolbox-plugins.json 启停记忆；原生静态合集的功能集合由构建命令固定
• 静态合集显式选择主题即随原生 Client 加载；动态模式主题仍按原有方式 define 后按需启动

框架优势（为什么全动态）

• 工作区隔离、进程内复用：同一进程可并行承载多个仓库工具箱；注册表、管理操作和启停记忆均按所属工作区路由
• 桩热重载：实现全在磁盘、payload 仅 ~0.9KB 桩；点「重跑」即生效，不重启进程、不重新批准
• 批准闸门保留：浏览器代码每进程仍过一次手，不存在"安装即永久信任"
• 不可变多版本：Package 并存，update 切指针、失败不丢旧版、回滚一条命令
• 自举重建：动态插件不跨进程——框架启动自动补齐缺失（~0.3s）；配 host-bootstrap 则开会话即重建
• AI 原生：cordis_define / cordis_run 是模型工具，智能体能在运行时自己造工具装上用

扩展：开发自己的工具插件

耦合面只有两条——ctx.get(TOOLBOX_RUNTIME.registryService).register(desc, handler)（经 shared/host.js 的 tryRegisterTool）和 HTML 面板协议。新插件三步：建 plugins/<key>/tool.js → build/plugin-catalog.mjs 的 PLUGINS 表加一行 → node make-payloads.mjs 后 define+run；骨架约 15 行，Host-only 不用写 Client 代码。完整指南（面板契约/踩坑/主题/冒烟）：PLUGIN-DEV.md。

数据与隐私约定

以下内容不入库（见 .gitignore）：

文档索引

• REBUILD.md — 目录结构、重建（含零模型调用自举）、迭代、数据与凭据
• PLUGIN-DEV.md — 新插件三步、impl 骨架、面板契约
• 插件.md — 心智模型与真实坑清单

License

MIT © 2026 Iwctwbh
